STANDARD FEATURES:

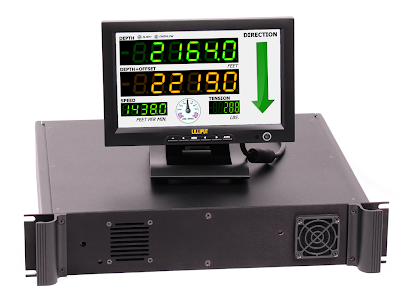

- Standard 2U rack mountable.
- Dual
Depth Display (Depth & Depth+Offset).
- Martin-Decker
style Large Tension Dial Display.
- Field depth calibration (Per 1000 units).
- 3
Operator configurable (Audio/Visual) alarms for
depth, tension, tension spike, & speed.*
- 12VDC
(Truck Battery) operation.
(6-34VDC)
- Depth
voice prompt.
- Digital Depth readout (Feet/Meters).
- Digital
Speed readout (Feet/Meters, per Minute or Hour).
- Signature
direction arrow.
- Digital
Tension readout with configurable Tension/spike gauge (differential &
absolute Tension, Lbs./Kgs.).
- Operator
configurable English/Metric
Depth, Tension & Speed
units (In any combination).
- Activity
Log for activity recording at
up to 10 times a second.
Including Depth, Tension,
Tension Spike, Speed, and
Alarm Status. (Accessible by
downloading to a thumb-drive.)
- Up
to 4GB of onboard space for
logs (Tattletale files),
easily accessible by copying
them to a USB thumb drive (
.csv format).
- Authorization Security to lock out one or more changes to the
following: Depth Cal., Alarms, Encoder Settings,
Tension Cal., Units Changes,
Time Set, Networking, and copy of Logs.
(Accessible via a user set password).
- Intuitive and elegant operator interface
via 10" LED touchscreen (Wide viewing angle).
- Output for logging system
(Depth/Tension) (Warrior® System
Compatible). Including Tension Output for easy Warrior® System
Tension calibration.
OPTIONS:
- *(Optional) Relays Package (2 normally
open/normally closed relays).
Note:
Relay triggering is tied to alarms (operator
configurable).
- (Optional) Network Communication & Control Package:
- Pre-configured
wireless router.
- Windows
Remote Master for view/control.
- Windows Remote Slave for view
only,
- Handheld
- Android OS view only app
- Includes
Cables and Software.
|
|
