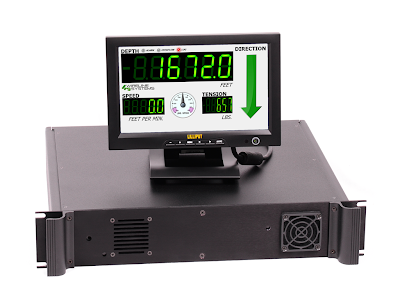

• Available in 2U, 3U or Console mountable configurations
• Depth logging at up to 4 times a second. Including Depth, Tension, Tension Spike, Speed, and Alarm Status. (Accessible by downloading to a thumb-drive.)
• Up to 4GB of onboard space for logs (Over 70 days of logs @ 4 times a second!), easily accessible by copying them to a USB thumb drive (.4gdl format (Warrior compatible), or .csv formats).
• Selectable Martin-Decker style Large Tension Dial Display.
• Field depth calibration (Per 1000 units).
• 3 Operator configurable (Audio/Visual) alarms for depth, tension, tension spike, & speed.*
• 12VDC (Truck Battery) operation. (6-34VDC)

• Digital Depth readout (Feet/Meters).
• Digital Speed readout (Feet/Meters, per Minute or Hour).
• Signature direction arrow.
• Digital Tension readout with configurable Tension/spike gauge (differential & absolute Tension, Lbs./Kgs.).
• Operator configurable English/Metric Depth, Tension & Speed units (In any combination).
• Activity Log for activity recording at up to 10 times a second. Including Depth, Tension, Tension Spike, Speed, and Alarm Status. (Accessible by downloading to a thumb-drive.)
• Authorization Security to lock out one or more changes to the following: Depth Cal., Alarms, Encoder Settings, Tension Cal., Units Changes, Time Set, Networking, and copy of Logs. (Accessible via a user set password).
• Intuitive and elegant operator interface via 7" LED touchscreen (Wide viewing angle).

Note: Relay triggering is tied to alarms (operator configurable).
