STANDARD FEATURES:

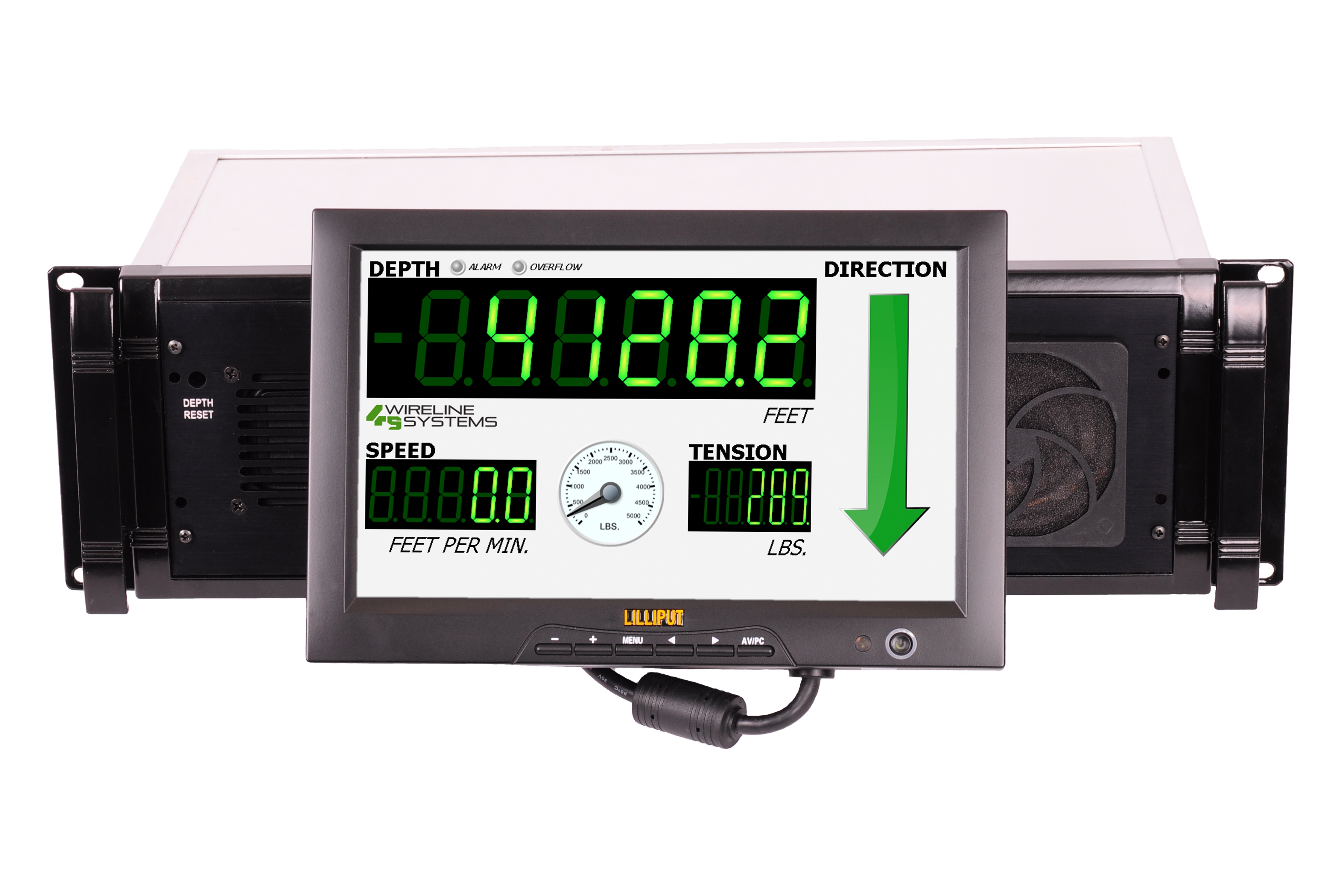

- Standard 3U Rack or Console mountable.
- Tiltable Display (Back and Forth) for those Sunny Days
- Dual Depth Display (Depth & Depth+Offset).
- Martin-Decker style Large Tension Dial Display.
- Field depth calibration (Per 1000 units).
- 3 Operator configurable (Audio/Visual) alarms for depth, tension, tension spike, & speed.*
- 12VDC (Truck Battery) operation. (6-34VDC)
- Depth voice prompt.
- Digital Depth readout (Feet/Meters).
- Digital Speed readout (Feet/Meters, per Min. or Hr.).
- Signature direction arrow.
- Digital Tension readout with configurable Tension/spike gauge (differential &
absolute Tension, Lbs./Kgs.).
- Operator
configurable English/Metric
Depth, Tension & Speed
units (In any combination).
- Activity
Log for activity recording at up to 4 times a second.
Including Depth, Tension, Tension Spike, Speed, and Alarm Status. (Accessible by
downloading to a USB flash-drive.)
- Up to 4GB of onboard space for
logs (Tattletale files), easily accessible by copying them to a USB thumb drive ( .csv format).
- Authorization
Security to lock out one or
more changes to the
following: Depth Cal.,
Alarms, Encoder Settings,
Tension Cal., Units Changes,
Time Set, Networking, and
Deletion of Logs.
(Accessible via a user set
password).
- Intuitive,
and elegant operator interface
via 10" LED touchscreen (Wide
viewing angle).
- Output for logging system
(Depth/Tension) (Warrior® System
Compatible). Including Tension Output for easy Warrior® System
Tension calibration.
OPTIONS:
- *(Optional)
Relays Package (2 normally open/normally closed relays).
Note:
Relay triggering is tied to alarms (operator configurable).
- (Optional)
Network Communication &
Control Package:
- Pre-configured
wireless router.
- Windows
Remote Master for
view/control.
- Windows
Remote Slave for view
only,
- Handheld
- Android OS view only app
- Includes Cables and Software.
|
|
